Linear Rail Motor Kit CNC Ball Screw Sliding Table SFU1605 Nema23 Motor Slide Table Linear Guide Stage XYZ Axis Motion Module
4.6 (118 items)
Limited Time Sale$170.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 203021164 | Release Date | 2025/09/21 | List Price | $171.00 | Model Number | 203021164 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
● Only Slide Table:
1* SFU1605 Double Rail Slide Table
1* 8mm to 8mm Coupling for 8mm shaft Nema 23 Stepper Motor
● 1.2/2/3Nm Motor kit:
1* SFU1605 Double Rail Slide Table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* 8mm to 8mm Coupling
● 1.5/2.2/3Nm Encoder motor:
1* SFU1605 Double Rail Slide Table
1* Nema 23 57mm Closed Loop Stepper Motor
1* HB808C Drive
1* 8mm to 8mm Coupling
● 1.5/2/3.2Nm All in one kit:
1* SFU1605 Double Rail Slide Table
1* Integrated Nema 23 57mm Closed Loop Stepper Motor Drive
1* 8mm to 8mm Coupling

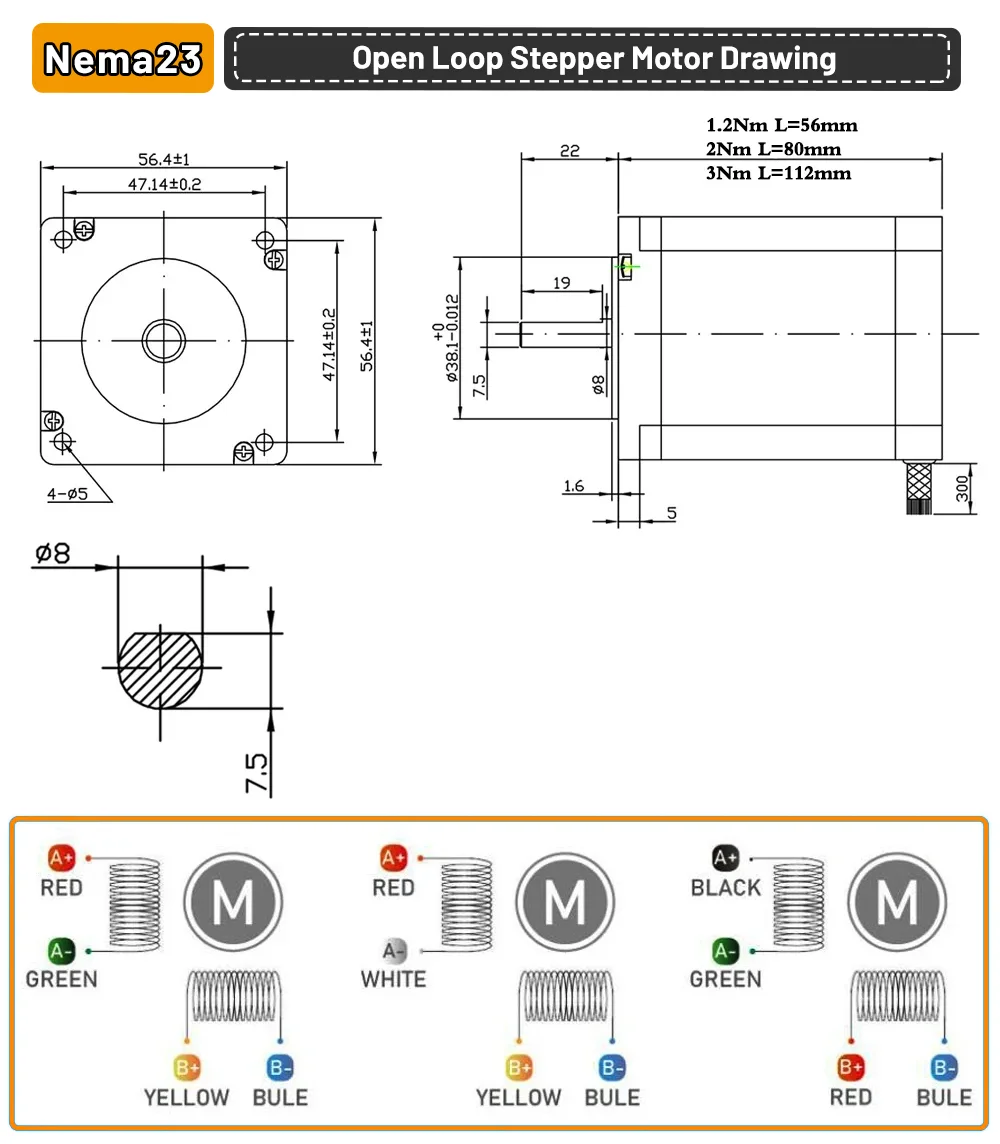

| Nema23 57mm Flange Stepper Motor Technical Parameters | |||||||||
| Model | Motor type | MAX. speed (rpm) | With/ without encoder | Holding torque (N.m) |
Body length (mm) |
Current (A) |
Phase resistance (Ω) |
Moment of inertia (g.cm²) |
Output diameter (mm) |

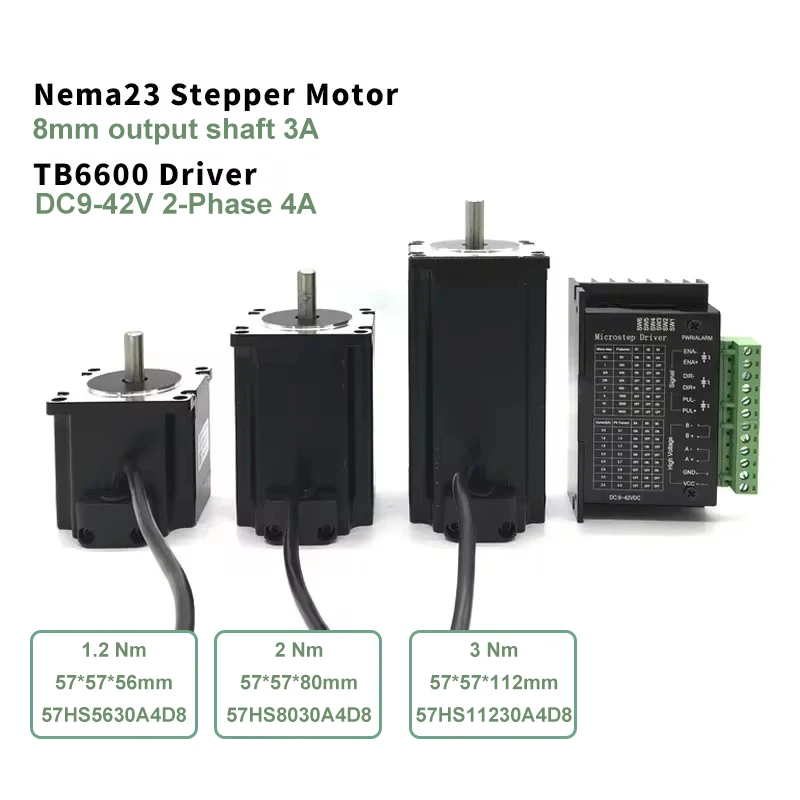

| 57HS5630A4 | open-loop stepper motor | 1000 | without | 1.2 | 56 | 3 | 0.8 | 280 | 8 |
| 57HS8030A4 | 2 | 80 | 3 | 1.2 | 580 | ||||
| 57HS11230A4 | 3 | 112 | 3 | 1.6 | 800 | ||||

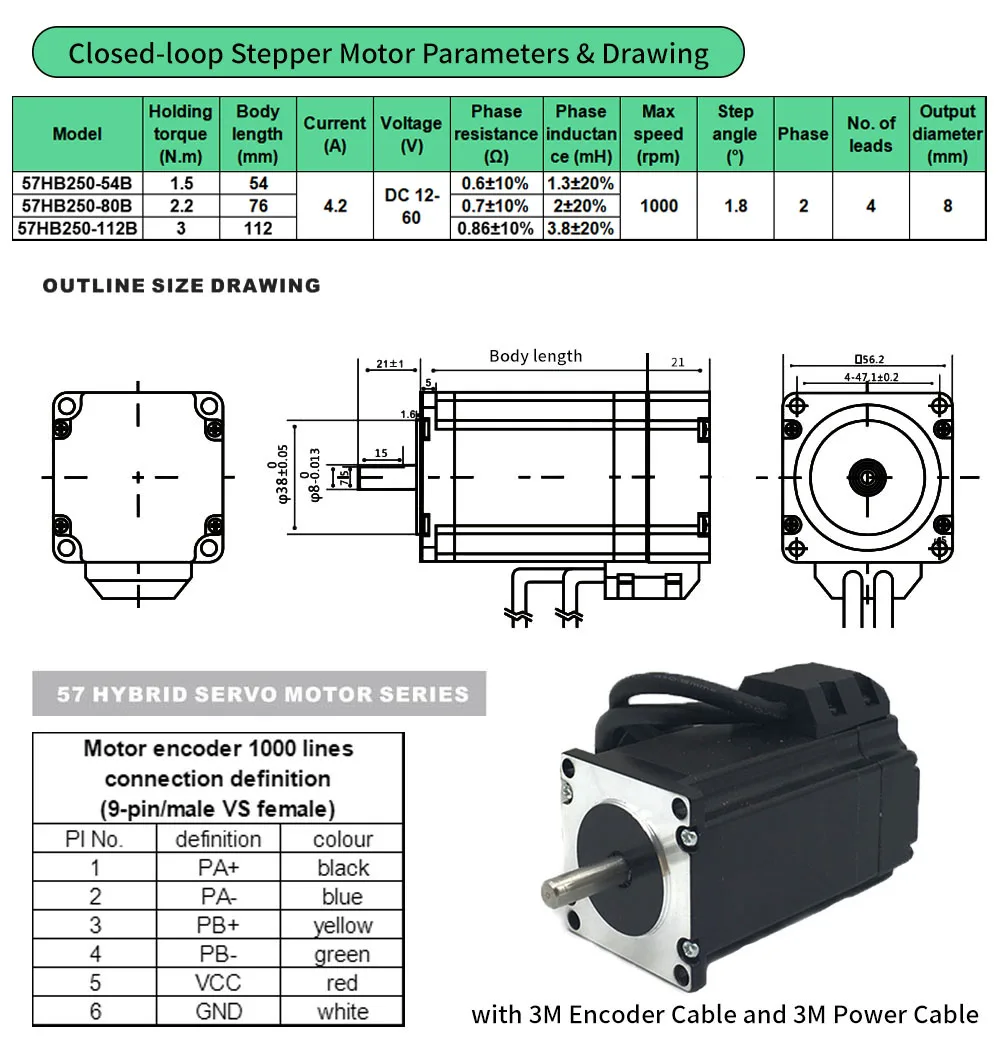

| 57HB250-54B | closed-loop stepper motor | 1000 | with | 1.5 | 56 | 4.2 | 0.4 | 280 | |
| 57HB250-80B | 2.2 | 80 | 4.2 | 0.7 | 500 | ||||
| 57HB250-112B | 3 | 112 | 4.2 | 0.8 | 800 | ||||

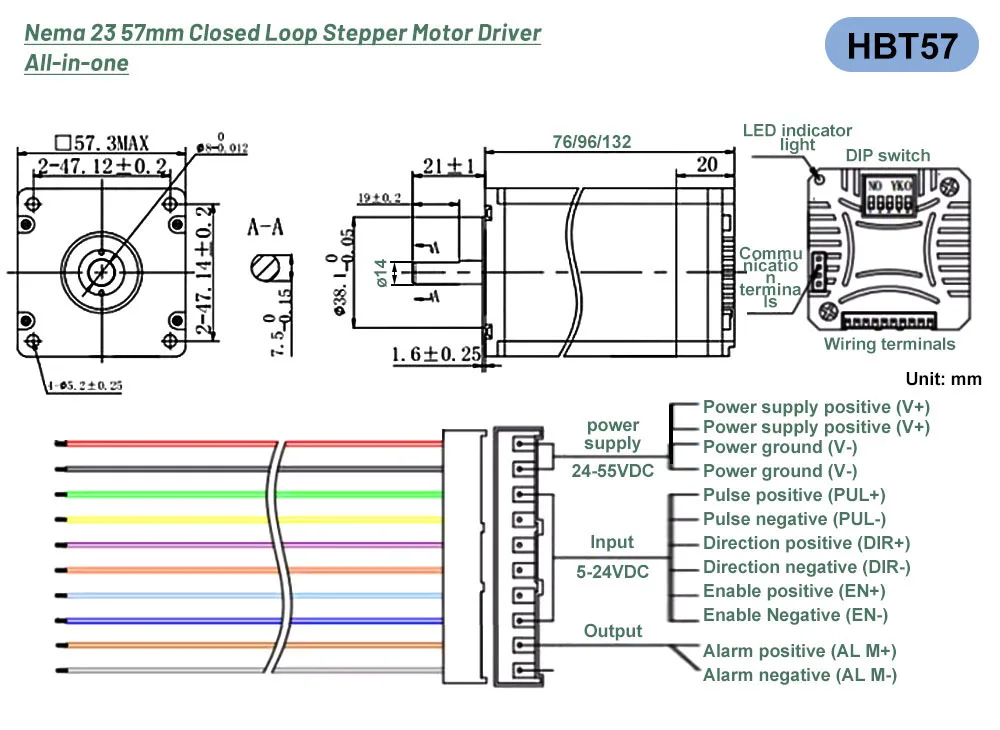

| HBT5756C | integrated closed-loop stepper motor drive |
3000 | with | 1.5 | 76 | 3 | 0.93 | 300 | |
| HBT5776C | 2 | 96 | 3.5 | 0.4 | 450 | ||||
| HBT57112C | 3.2 | 132 | 4.5 | 0.78 | 760 | ||||

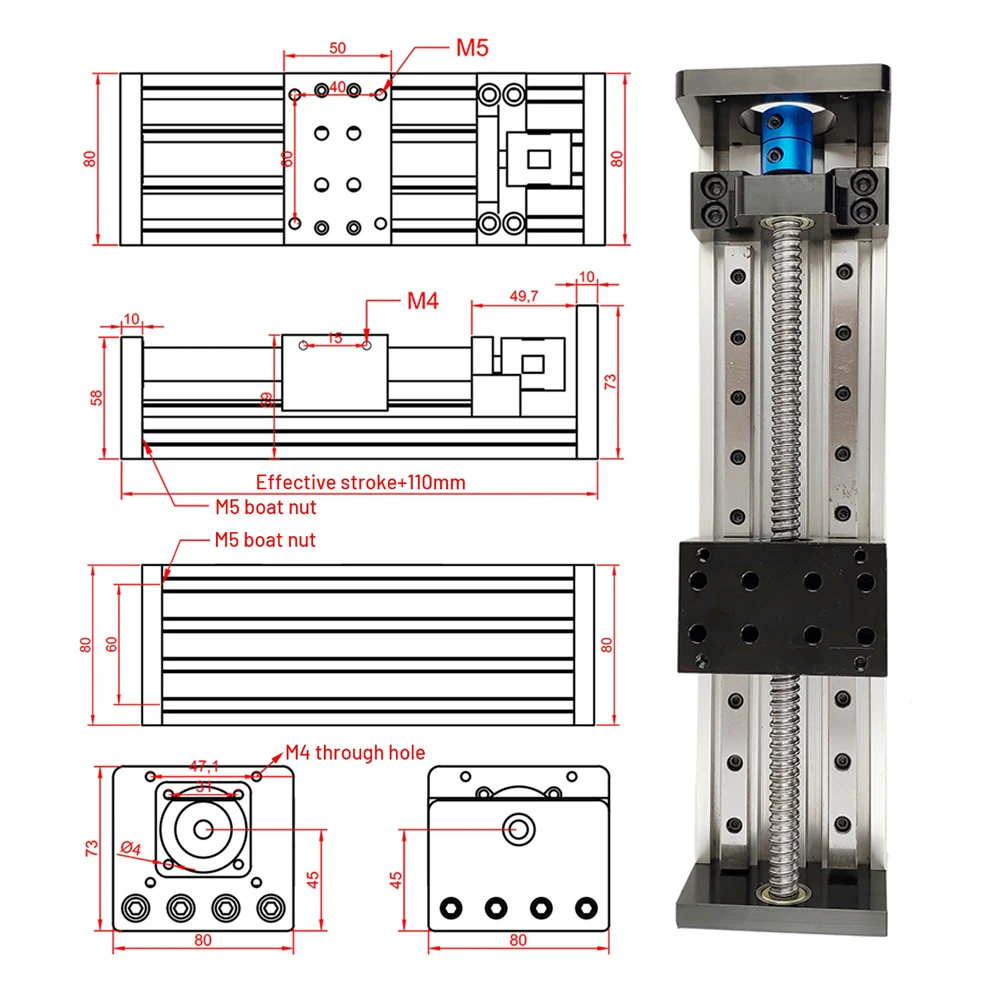

●Model: SXG5080
●Ballscrew type: SFU1605
●Ballscrew accuracy: C7 level
●Effective stroke: 100mm-300mm Optional
●Total length: Effective stroke+110mm
●Mobile panel size: 50*80mm
●Guide diameter: 12mm
●Guide Type: 2*MGN12R
●Slider Type: 2*MGN12H
●Horizontal load:Max 60KG
●Vertical load:Max 30KG
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.02-0.03mm
● Supported motor bracket (support customization): Compatible with Nema 17/ Nema 23 stepper motor
●Ballscrew and linear rail material: Carbon steel and bearing steel
●Base plate material: Aluminium alloy
Open-loop Stepper Motor Drive Technical Parameter:
●Model: TB6600
●Manual: https://drive.google.com/open?id=1NHNwZy4P7mjvHdQcrkXWJ-gS2cBF_tMk
●Input voltage: DC 9-42V
●Input/ Output current: 0.5-3.5A
●Maximum power: 150W
●Subdivision: 1,2,4,8,16,32
●Operating environment temperature: -10～45℃
●Storage temperature: -40℃～70℃

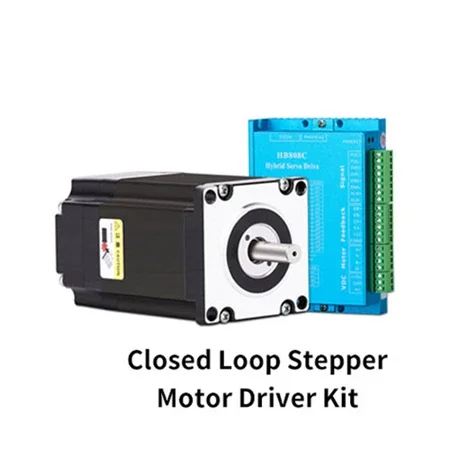

Closed-loop Stepper Motor Drive Technical Parameter:
●Model: HB808C
●Type: DSP closed loop stepper motor drive
●Maximum peak current: 13A
●Impulse response frequency: 200KHz
●Micro-stepping driver: 200~25600ppr
●Input Voltage: 24-80VDC
●Protective function: Over voltage, over current, tracking error, over proof
●Signal input: Support PUL/DIR and CW/CCW modes (difference)
●Compatible: 4.5~28V signal (Don't need a resistor)
●Manual: drive.google.com/file/d/1fU9u9NEfwOcw74qrgEfXbAI2GPxqn9uV/view?usp=sharing
●Debugging software: drive.google.com/open?id=1YuBFsTPk9V8saZ3A2UdLPNBcjAtGWW5J
●Special Debugging Cable Purchase link: https://www.aliexpress.com/item/2255801060937637.html?gatewayAdapt=4itemAdapt
