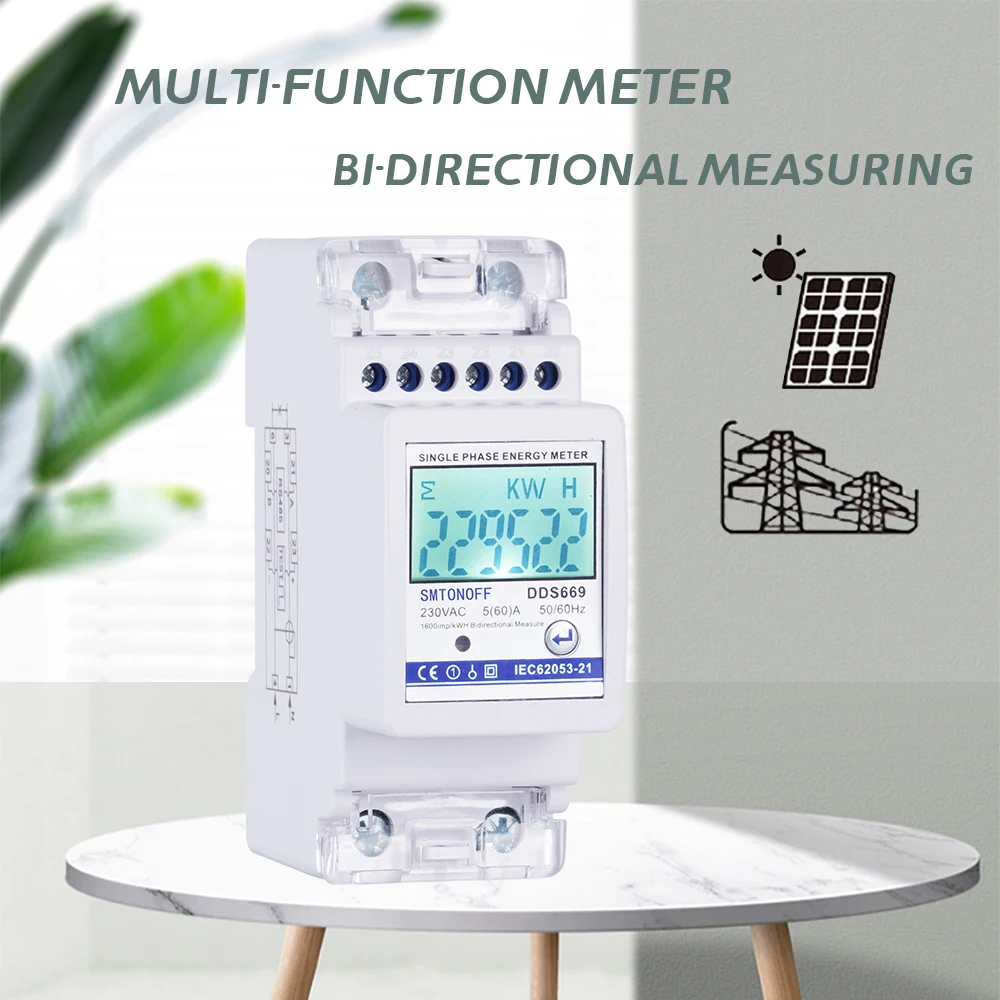

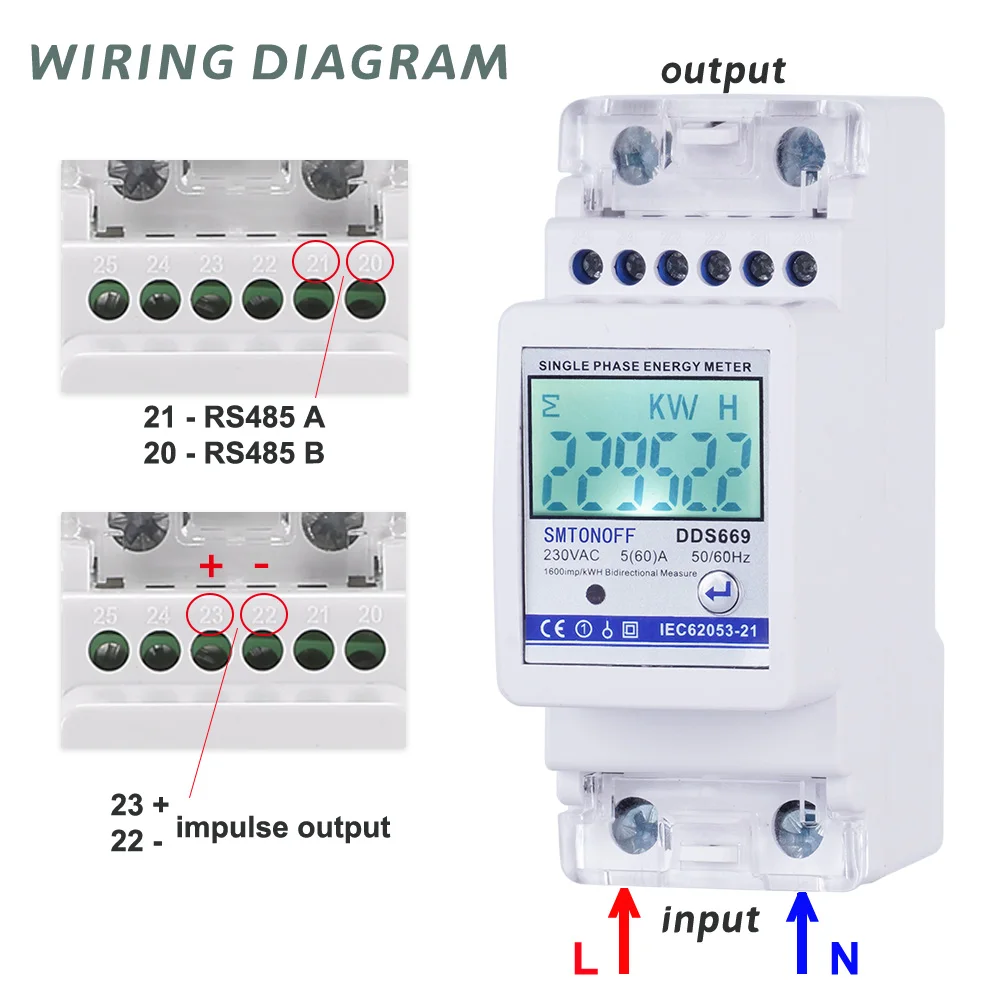

Multifunction 230V Bi-directional Energy Meter Import Export KWH Solar PV Power Voltage Current Frequency R485 Communication
4.8 (110 items)
Limited Time Sale$16.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 203022278 | Release Date | 2025/09/21 | List Price | $17.00 | Model Number | 203022278 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

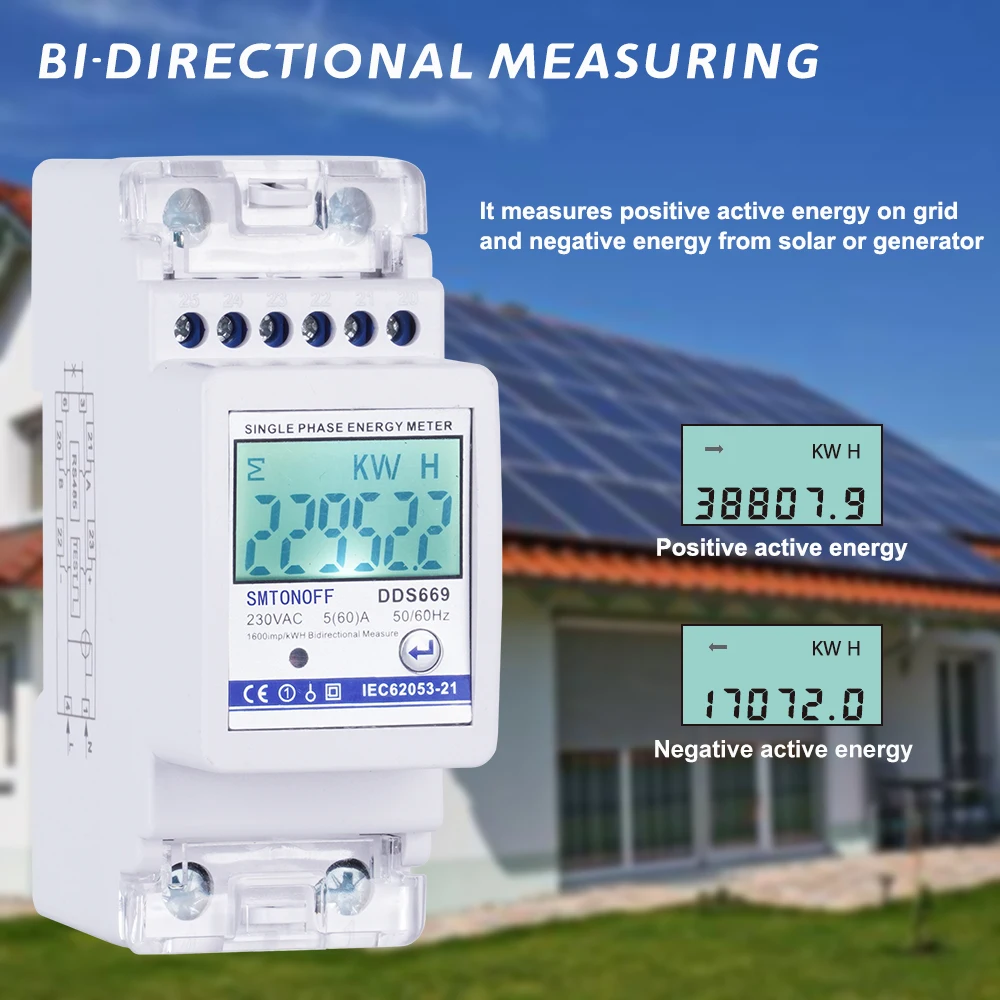

Bi-directional Measure

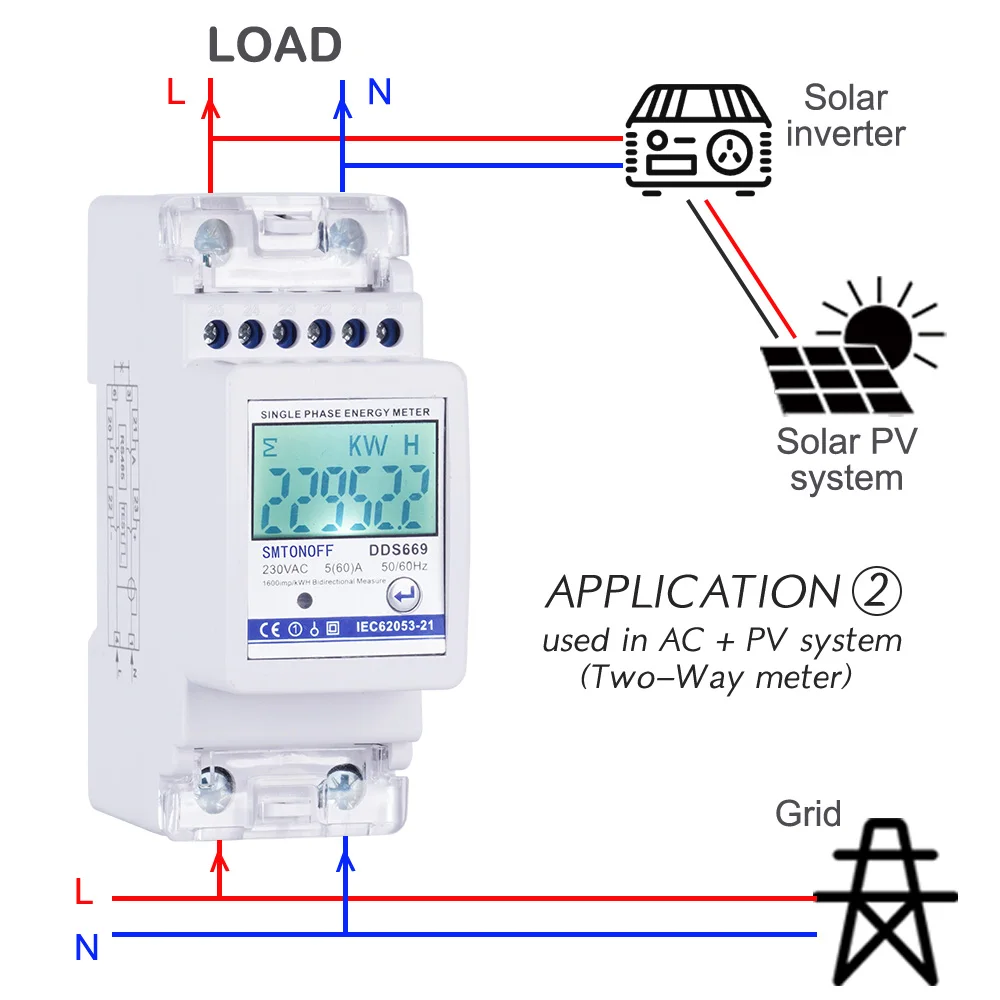

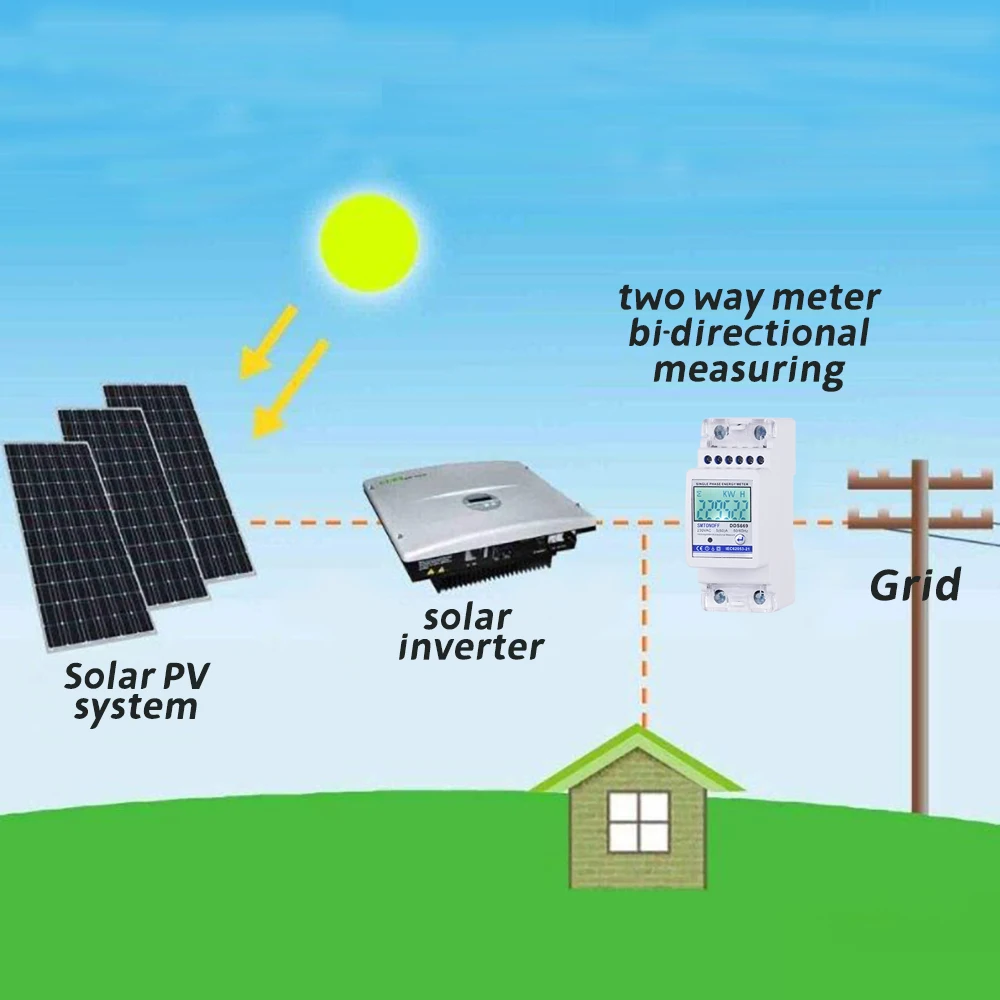

This meter measure city power energy ,also can measure negative power energy, like the solar PV and Generator

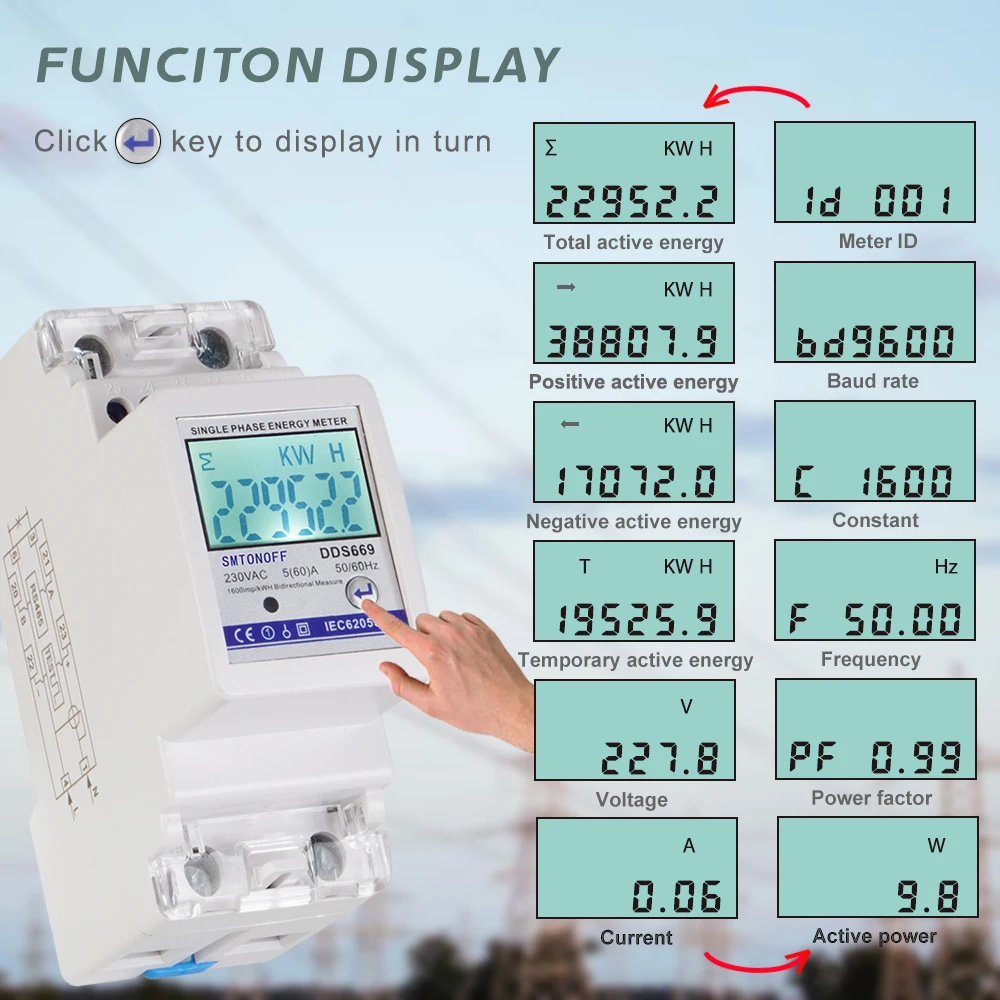

Real-time display of Total Active Energy KWh, Positive Active Energy KWH, Negative Active Energy KWH, Temporary Active Energy KWH
Voltage, Current, Active Power, Power factor ,Frequency
Reference Voltage: 220/230V
Reference Current: 5(60A)
Accuracy Level: 1.0
Rated Frequency: 50-60Hz
Constant Pulse: 1600imp / kWh
Power Consumption: ≤2W, 10VA
Starting Current: 0.004Ib
Operating Temperature: -20 ~ 55°
Storage Temperature: -25 ~ 70°
LCD display with Backlight
Note:

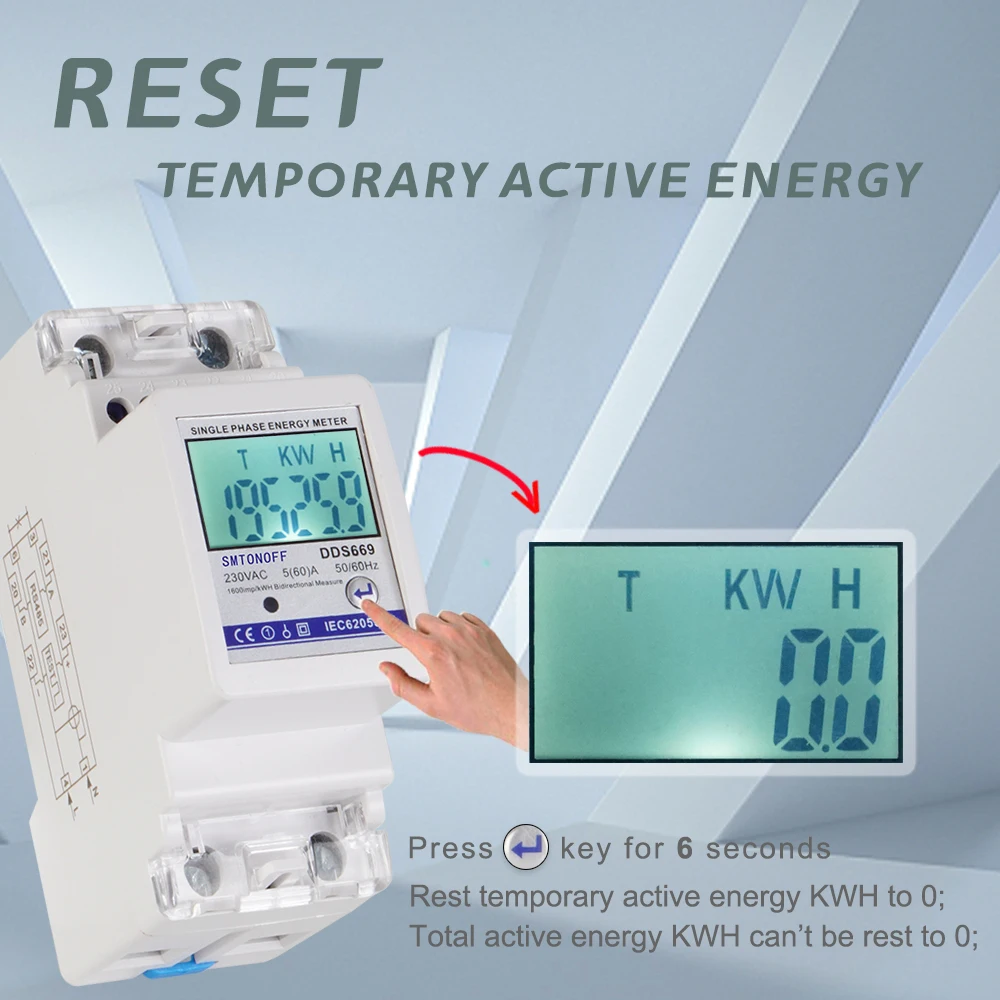

Hold the button for 6 seconds to Reset the temporary kWh to 0
The Total kWh can not be Reset.
